Valve actuator SAUTER AVM215SF132-7 - 24VAC, 500N, 0-10V, Stroke 8-20mm, adapter set

Model:	SAU_AVM215SF132-7
Manufactured by:	SAUTER
Price was:	13829 Kč
Sale price:	11755 Kč incl. VAT 9715 Kč excl. VAT
Save:	15% off
Add to Cart: Add to Cart

not rated yet

Show/write reviews

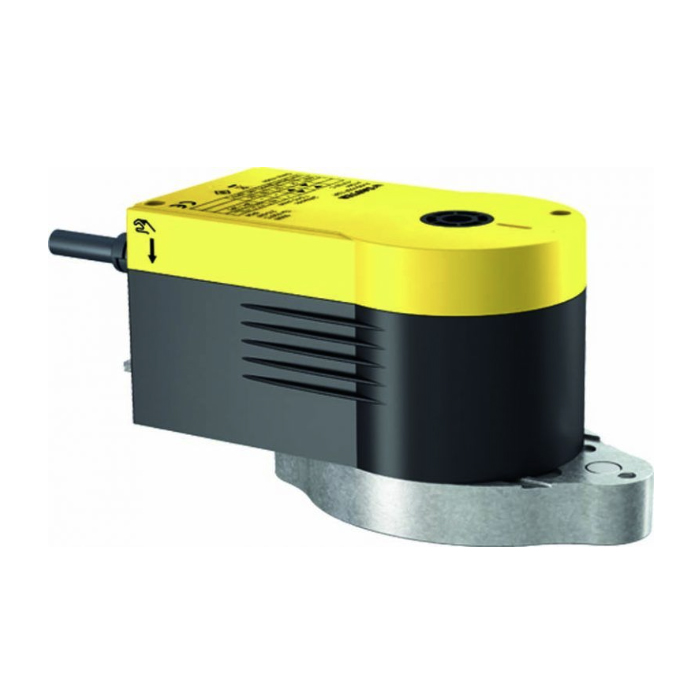

Valve actuator SAUTER AVM215SF132-7 - 24VAC, 500N, 0-10V, Stroke 8-20mm, adapter set

AVM215SF132-7 including adapter set for VDL flanged valves DN 50, DN 65 and DN 80.

Features:

• Actuation of 2- and 3-way valves
• For controllers with a switching (2- and 3-point) or continuous (0...10 V) output
• Stepping motor with SAUTER Universal Technology (SUT) electronic control unit and electronic,
• force-dependent cut-off
• Automatic recognition of applied control signal (continuous or switched)
• Coding switches for selecting characteristic and running time
• Type of characteristic (linear/equal-percentage) can be set on the actuator
• Automatic adaptation to valve stroke
• Direction of operation can be selected directly on the cable
• Maintenance-free gear unit
• Gear unit can be disengaged in order to position the valve by hand with the hexagon key provided
• (load-free)
• Connection with valve spindle performed semi-automatically after control voltage is applied
• Fitting vertically upright to horizontal, not suspended

---
