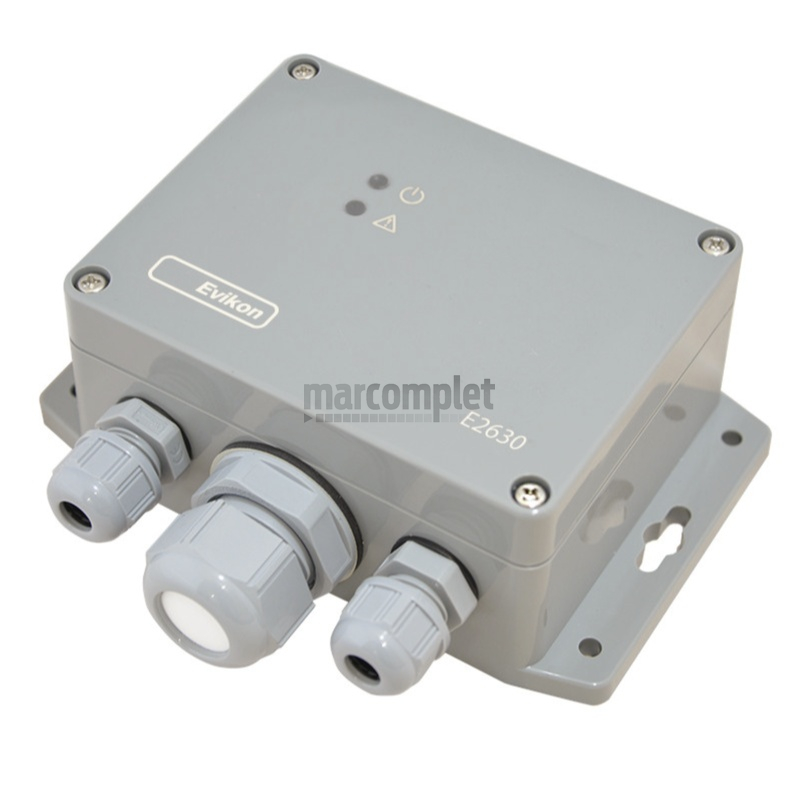

EVIKON E2630-VOC-230 - solvent vapour and volatile organic compound detector
The EVIKON E2630-VOC-230 is a professional stationary detector designed for continuous monitoring of solvent vapours and volatile organic compounds (VOCs) in industrial, commercial and technical areas. The standard calibration is based on toluene, while the sensor also responds to xylene, ethanol, acetone, benzene, ethyl acetate and other VOCs.
The detector uses a metal-oxide semiconductor sensor with diffusion sampling. Two-stage visual and acoustic alarms provide early warning of elevated VOC concentrations. Two change-over relays can be used for ventilation control, remote signalling or connection to a supervisory control system.
The robust wall-mounted ABS enclosure provides IP65 protection for demanding operating environments. The device also supports magnetic-key testing and a UART digital interface.
Applications:
- paint shops and solvent-processing areas
- paint, fuel and chemical storage rooms
- laboratories
- manufacturing and process areas
- technical rooms with a risk of VOC accumulation
Main features:
- detection of solvent vapours and volatile organic compounds
- default calibration to toluene
- long-life semiconductor sensor
- two-stage visual and acoustic alarm, 85 dB
- two output relays for alarm or ventilation control
- UART digital interface
- wall mounting and IP65 enclosure
Why choose the EVIKON E2630-VOC-230:
The detector is suitable for professional air-quality and safety monitoring systems requiring reliable VOC detection, local alarms and automatic ventilation control. Two relay outputs, an acoustic alarm, IP65 protection and a wide operating-temperature range support use in a broad range of industrial and commercial applications.
Technical specifications:
| Detected vapours | toluene, xylene, ethanol, acetone, benzene, ethyl acetate and other VOCs |
| Sensing method | metal-oxide semiconductor |
| Sampling method | diffusion |
| Detection range | 0 to 100% LEL or 0 to 100-1000 ppm depending on configuration |
| Resolution | 0.1% LEL or 1 ppm |
| Response time | T90 less than 120 s |
| Sensor lifetime | more than 5 years |
| Power supply | 90 to 265 VAC |
| Outputs | 2 change-over relays, max. 250 VAC / 30 VDC, 5 A |
| Alarms | flashing LED and 85 dB buzzer |
| Digital interface | UART |
| Protection class | IP65 |
| Dimensions | 90 x 145 x 55 mm |
| Operating temperature | -30 to +70 °C |
| Maintenance interval | 12 months |
